More Stable Image Capture for Inspection
Sharper images. Greater confidence in every weld evaluation.
-
Inverted optical system with segmented LED illumination, engineered to optimize image capture and significantly enhance inspection quality.
-
Full HD resolution (1920x1080) for detailed visualization during weld analysis.
-
Autofocus functionality for faster adjustments and smoother operation.
-
Direct image and gain adjustments within the DIS platform, improving clarity and visualization of the welded joint.
​​
​
Deliver consistent visual performance that supports precise inspection decisions.
Metrological Consistency to Support Technical Decisions
Reliable measurements that strengthen quality assurance.
-
Eliminates the need for recalibration when changing weld bead size or applying zoom, streamlining the inspection process.
-
Automatic calibration with multipoint adjustment throughout the zoom range, ensuring greater measurement consistency.
-
Typical observed metrological variation of ± 1 µm (95%).
-
Technical results designed to support confident inspection and quality decisions.
​
Precision you can trust.
Even in the most demanding
automotive environments.
_edited.jpg)
Practical Operation and Seamless Workflow Integration
Built to fit your process. Designed to enhance it.
-
USB 3.0 connectivity for fast and reliable data transfer.
-
Automated optical magnification up to 25x, providing flexibility for different inspection scenarios.
-
Capture area of up to 80 × 80 mm.
-
Removable cover with opening for easier sample replacement.
-

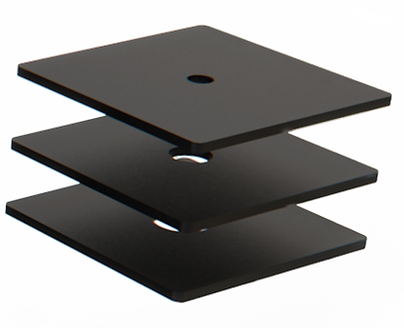

Interchangeable base set, allowing optimized configuration according to sample size and required capture area.
-
Designed to operate seamlessly with the DIS platform, integrating image capture and inspection into your existing workflow.
-
Enables direct association of selected magnification with the registered part.
-

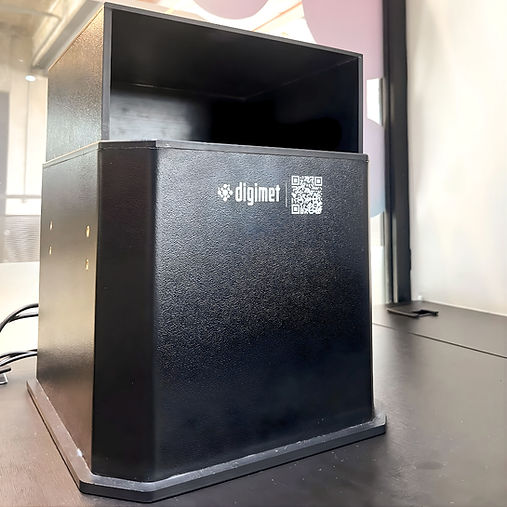

Built-in mounting system for integration of the WIC5 into the workstation, improving ergonomics and usability.
​​
​
Transform weld inspection into a faster, smarter, and fully integrated quality process.
Automate the Process of Measuring Weld Bead using project sketches defined by engineering through artificial intelligence developed by Digimet Solutions
